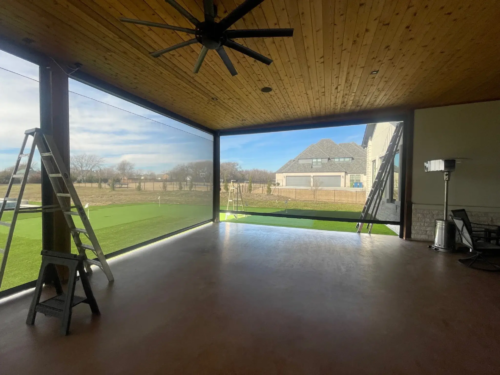

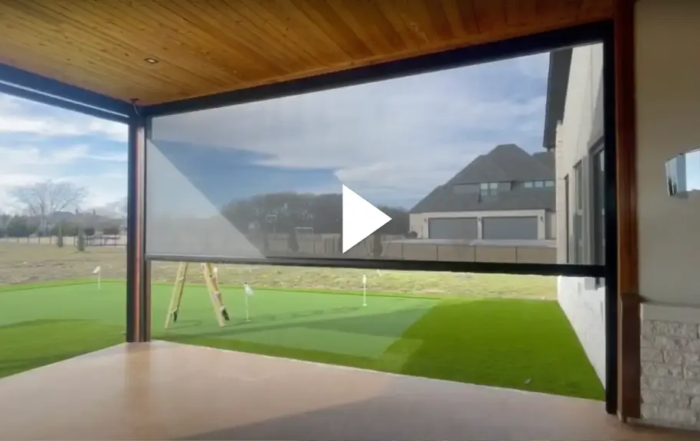

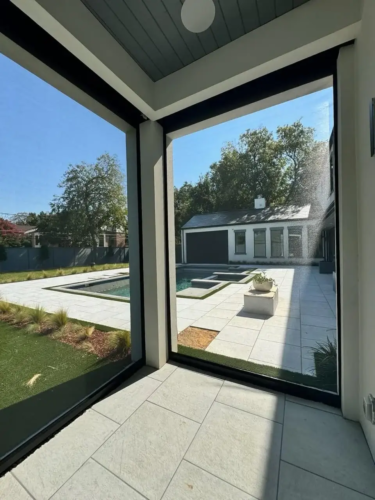

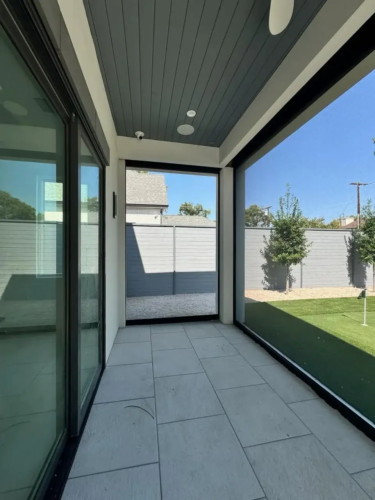

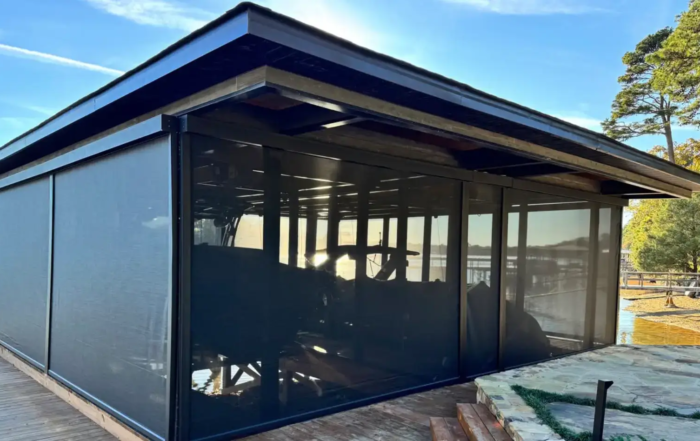

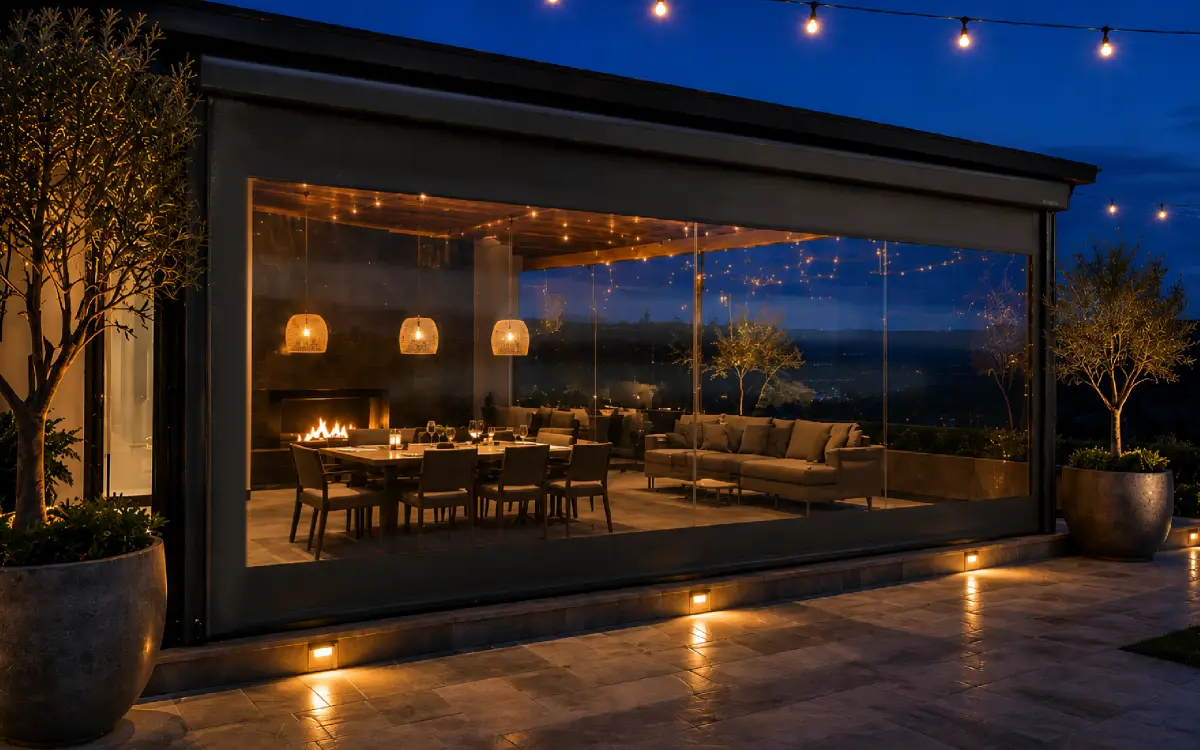

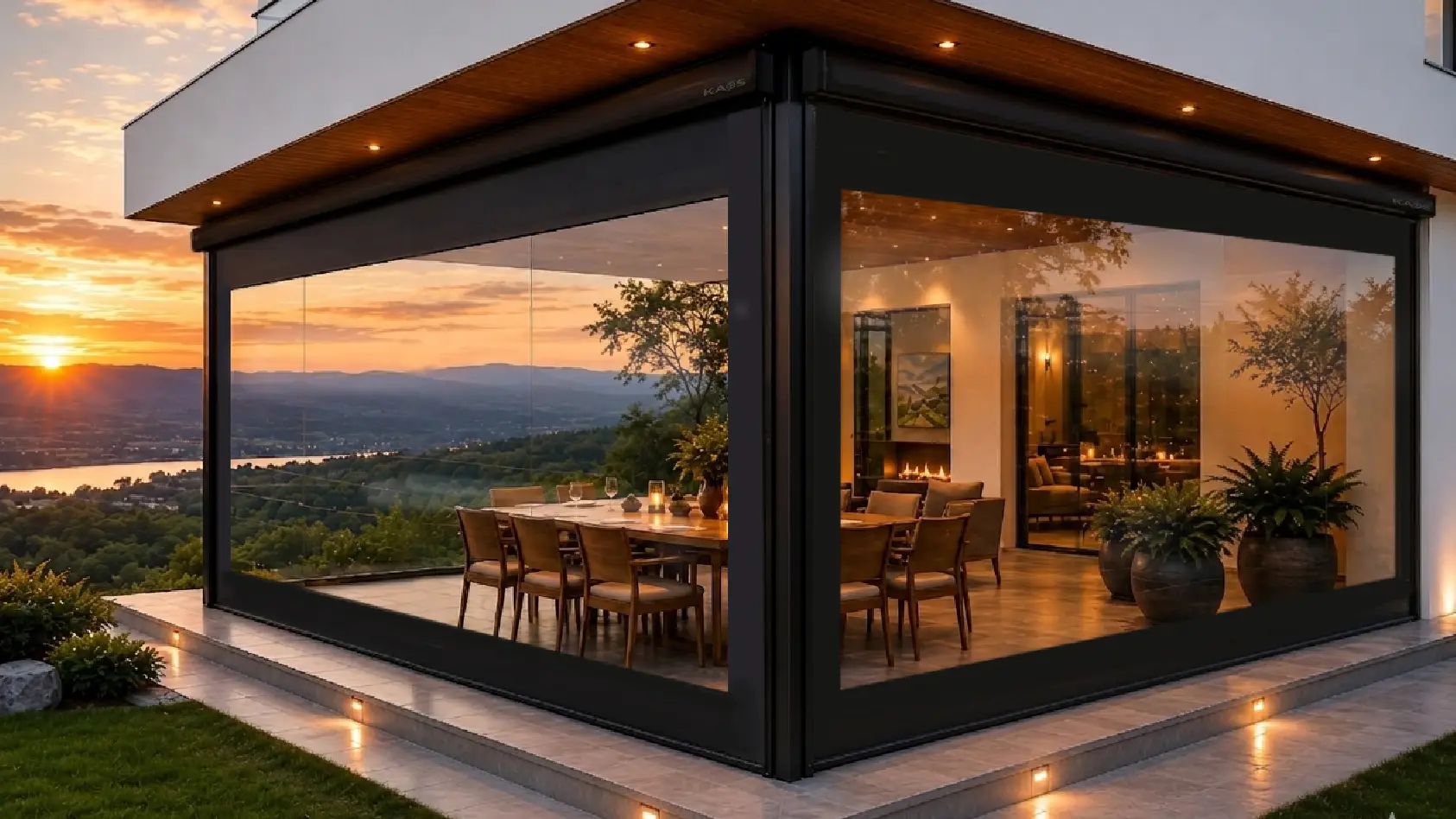

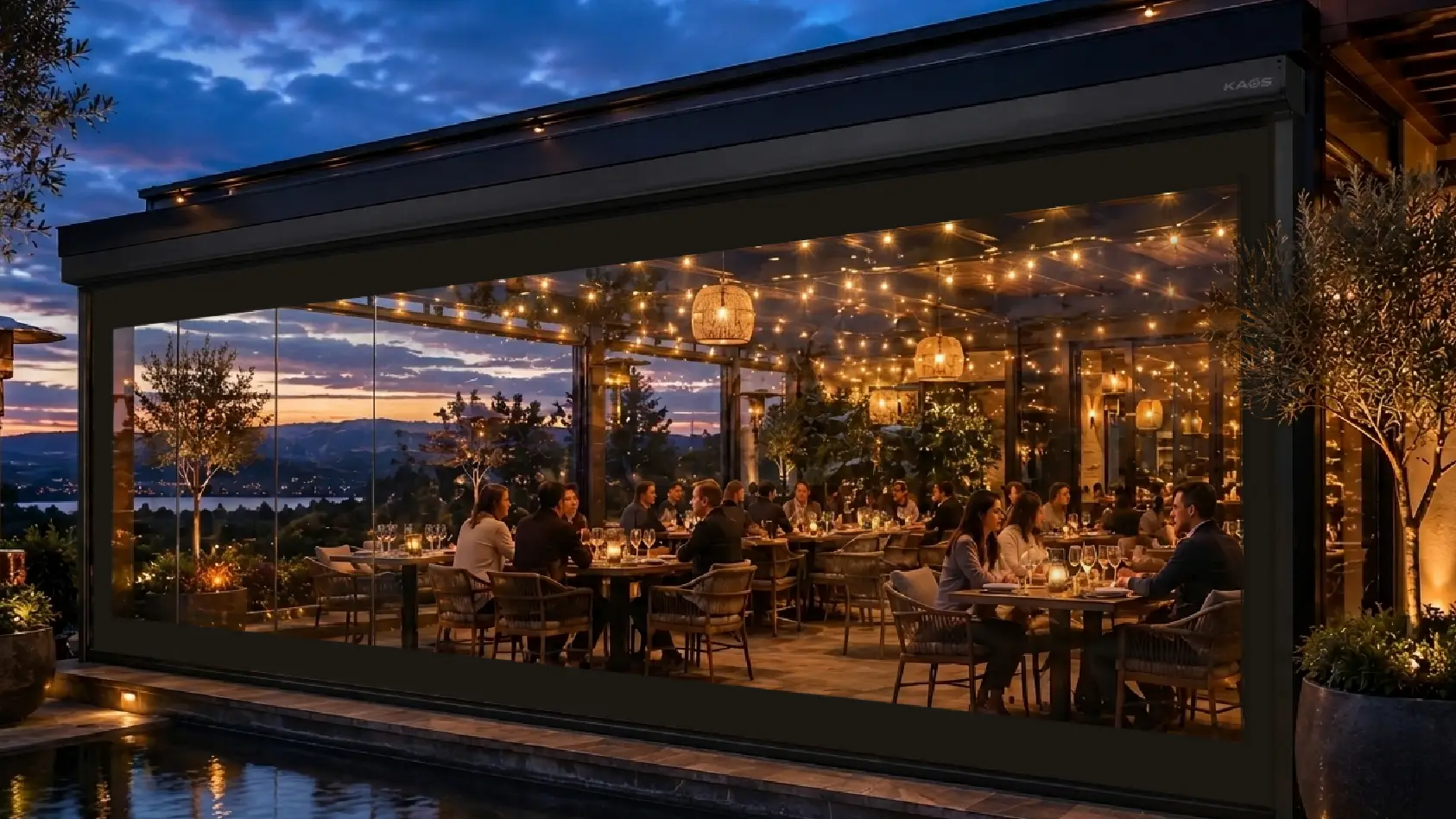

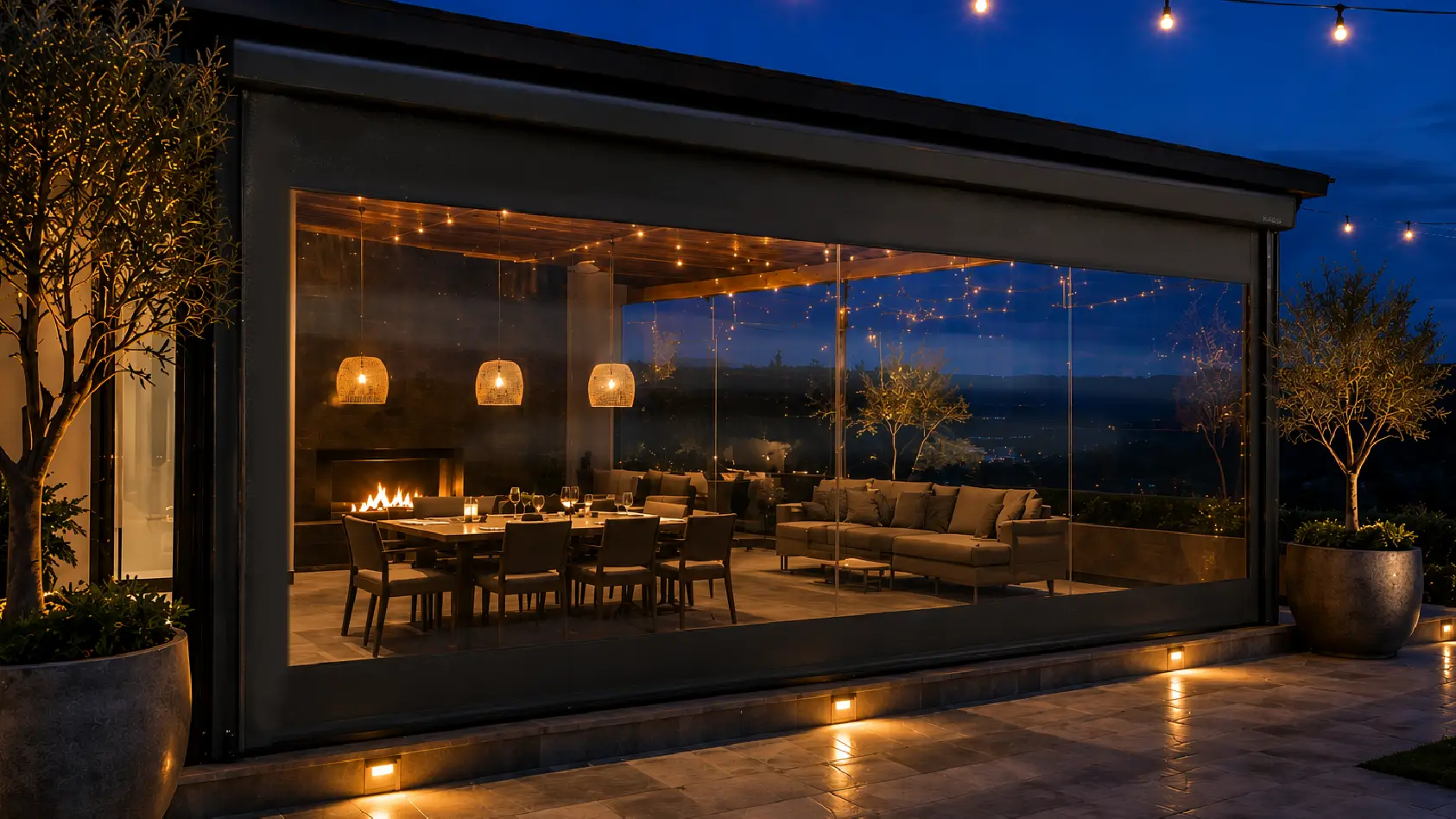

Crystal-Clear Vinyl Protection
Extend outdoor living with clear vinyl shades that provide protection from wind, rain, dust, pollen, and insects while helping maintain a more comfortable environment. Crafted with high-quality clear vinyl and durable border materials, these shades are available in black, white, or custom colors for a seamless, custom-tailored appearance.
50 Nm Smart Quiet Motor
Delivering increased torque for greater turning power under demanding outdoor conditions—while operating smoother and quieter than any motor in its class. Designed specifically for outdoor applications, the motor features adjustable obstacle detection for enhanced safety and long-term system protection.
Features
- Made from proprietary self-lubricating material with UV-hardening pigments, Onyx™ is built to last
- Available now with 20 mil clear vinyl from Triantage (Visilite), paired with standard black or white borders or an extensive range of colored border options from Serge Ferrari (Soltis 502 Proof)
- Protects against heat, UV, wind, salt air, and moisture
- Front Projection Material

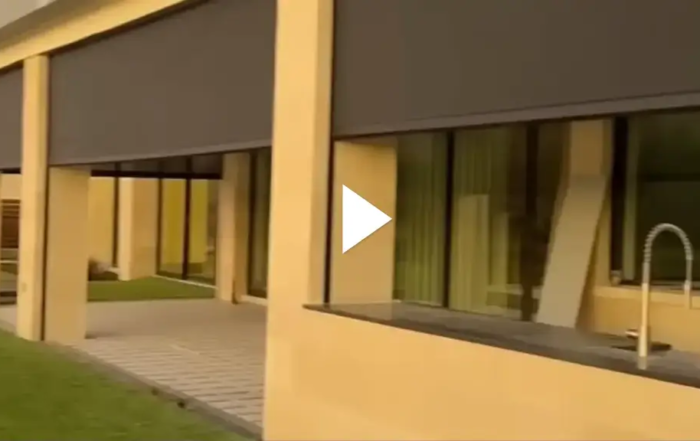

- Offering high-wind rated material with Omegatex from Kevlar

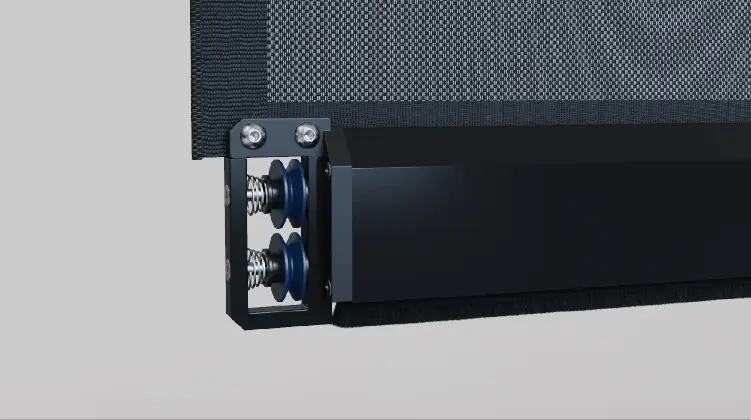

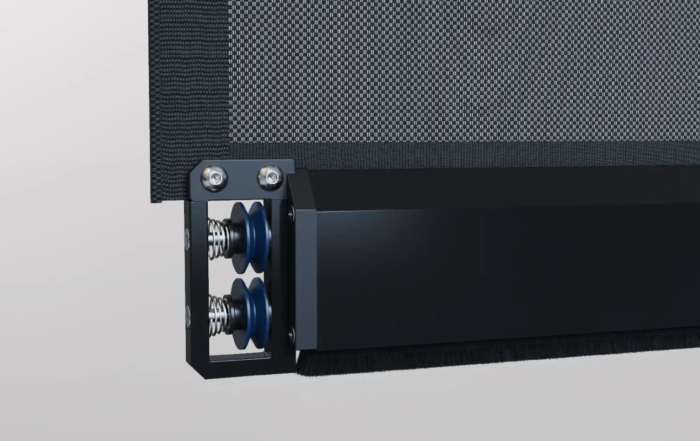

- With a unique snap-in tube and hidden bracket attachment, KAOS installs in half the time of traditional outdoor shading systems

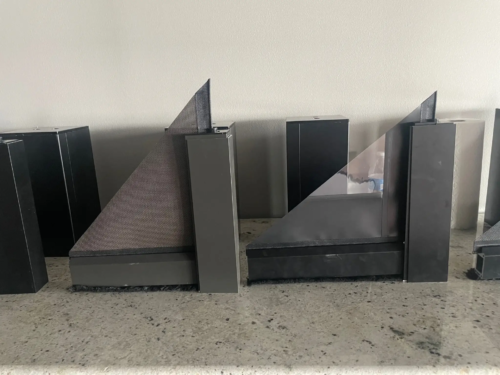

- Square Industrial Design with Matching Custom Powder Coat Colors
- Ceiling, Wall or Pocket mount options
- Outside, Inside and Inside with U-Channel, Inwall mounting variables
- Available sizes up to 24′ wide
- Integrates with SI Ecosystem and Bond Bridge Pro
Min. & Max. Measurements
Min. Width: 37.75″
- 575 Box up to 18′ x 17.5′
- 675 Box up to 24′ x 17.5′

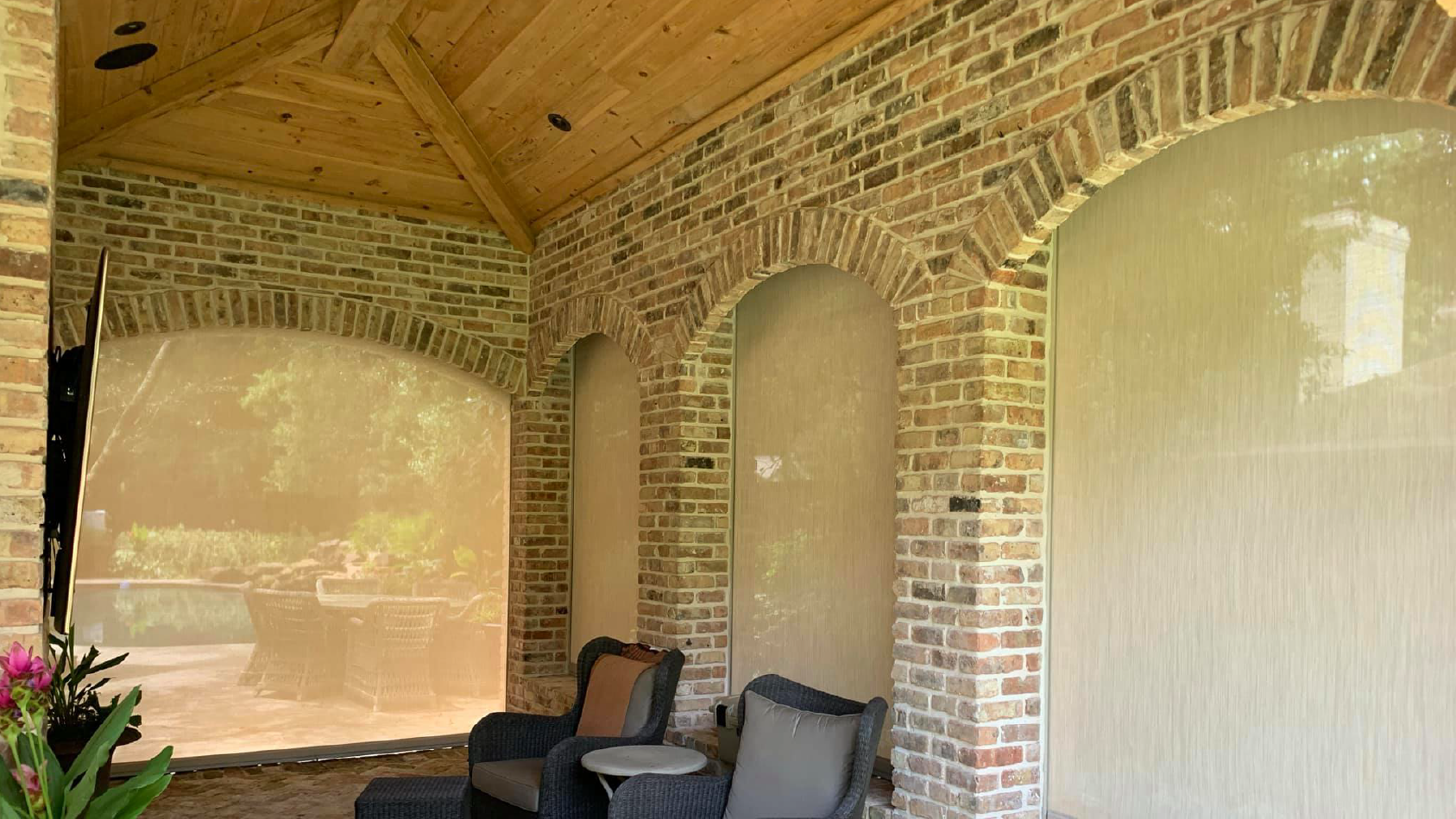

- Pocket up to 24′ x 17.5′
Note: If Vinyl fabric is picked in Box: Min. Side Border Width: 6″ Min. Top/Bottom Border Height: 12″.
Fabric selection may limit the size of the shade, or force cassette size to the next size up; use the SI Flow Tool and SI Design Services with help determining shade size and fabric selection compatibility.
Cassette Colors
9 standard powder coat options: Anthracite, Beach Sand, Carbon, Corten, Dune, Glacier, Granite, Urban Bronze, White Quartz
Form Factors
- Box

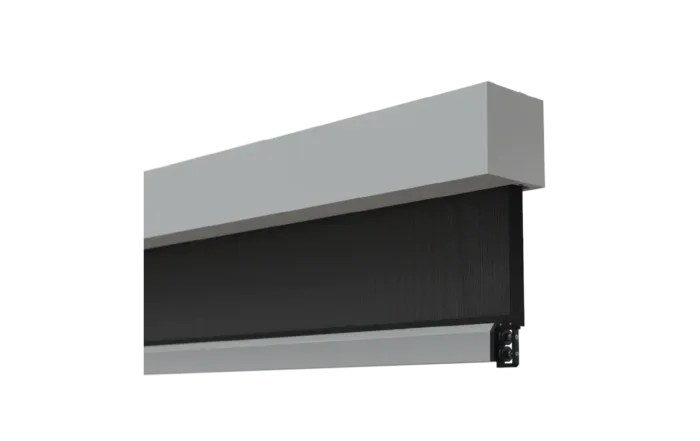

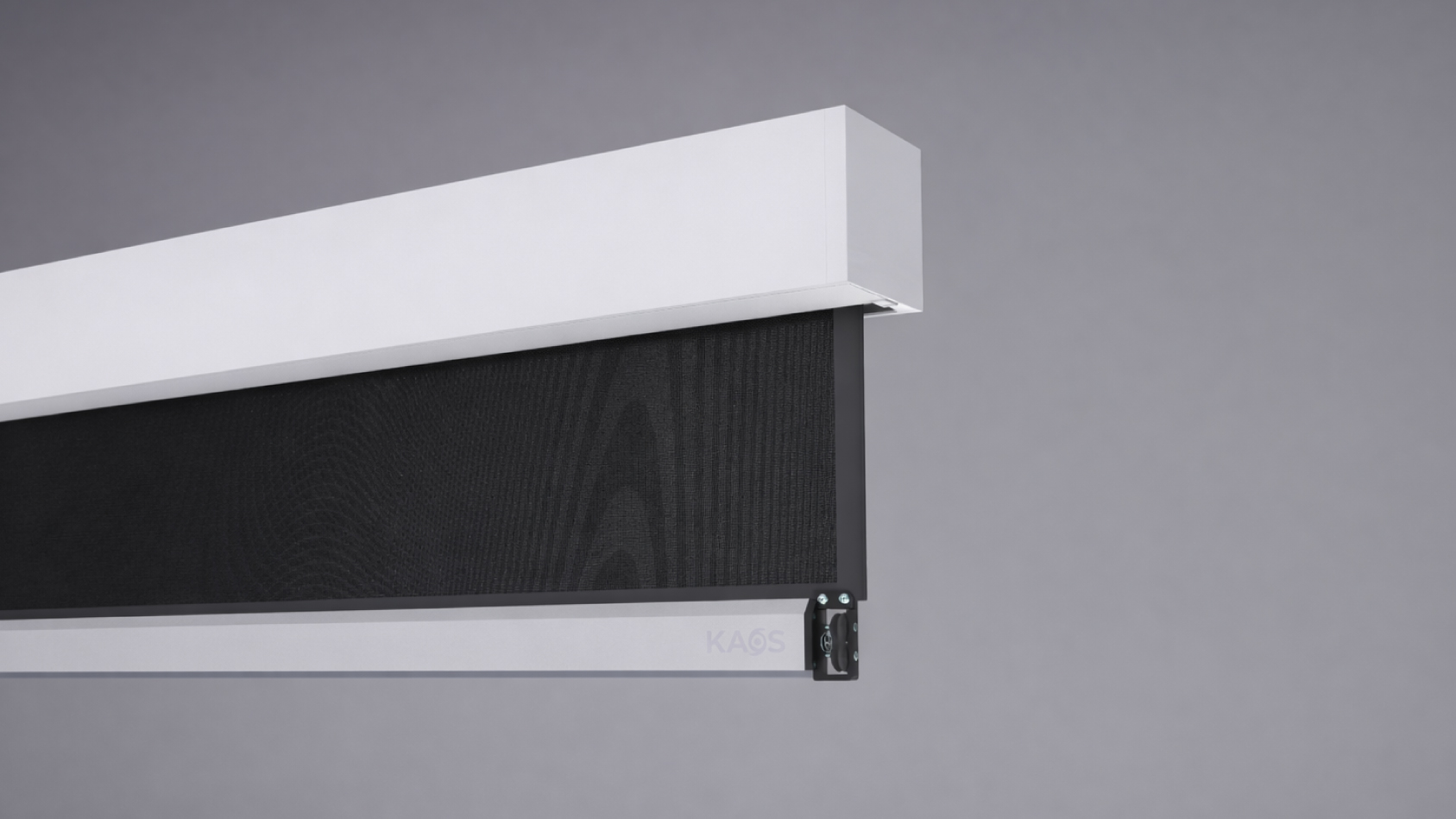

Cassette Dimensions
- 575: 5.63″ x 6.29″ (Up to 18′ x 17.5′)
- 675: 6.75″ x 7.45″ (Up to 24′ x 17.5′)
Compatible Power Sources
120v AC (Max 2.6 amp)
Supported Motor Types
RF Control
Environment
Outdoor Environment
Methods of Control
Wireless Integration and control
- RF Remote Control
- Bond Bridge Pro
- Screen Innovations Ecosystem
Fabrics
- Outdoor sunscreen options with different openness and color options. Rated @110mph wind rating. Internally tested
- Clear vinyl and your choice of standard black or white borders, along with an extensive selection of border colors

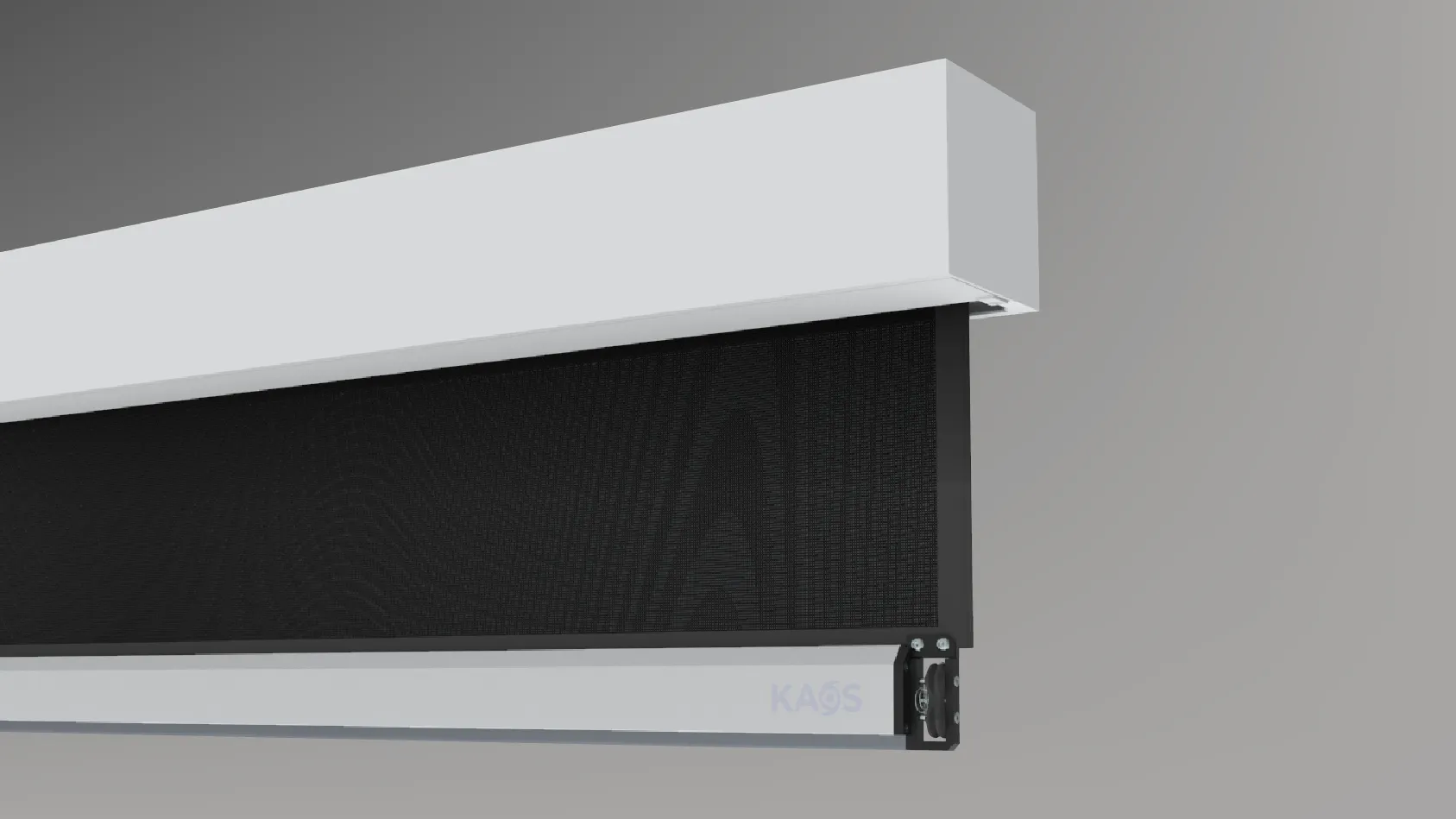

- Front Projection Material
- Security rated – 155mph wind and flying object rated. Tested by Twitchell

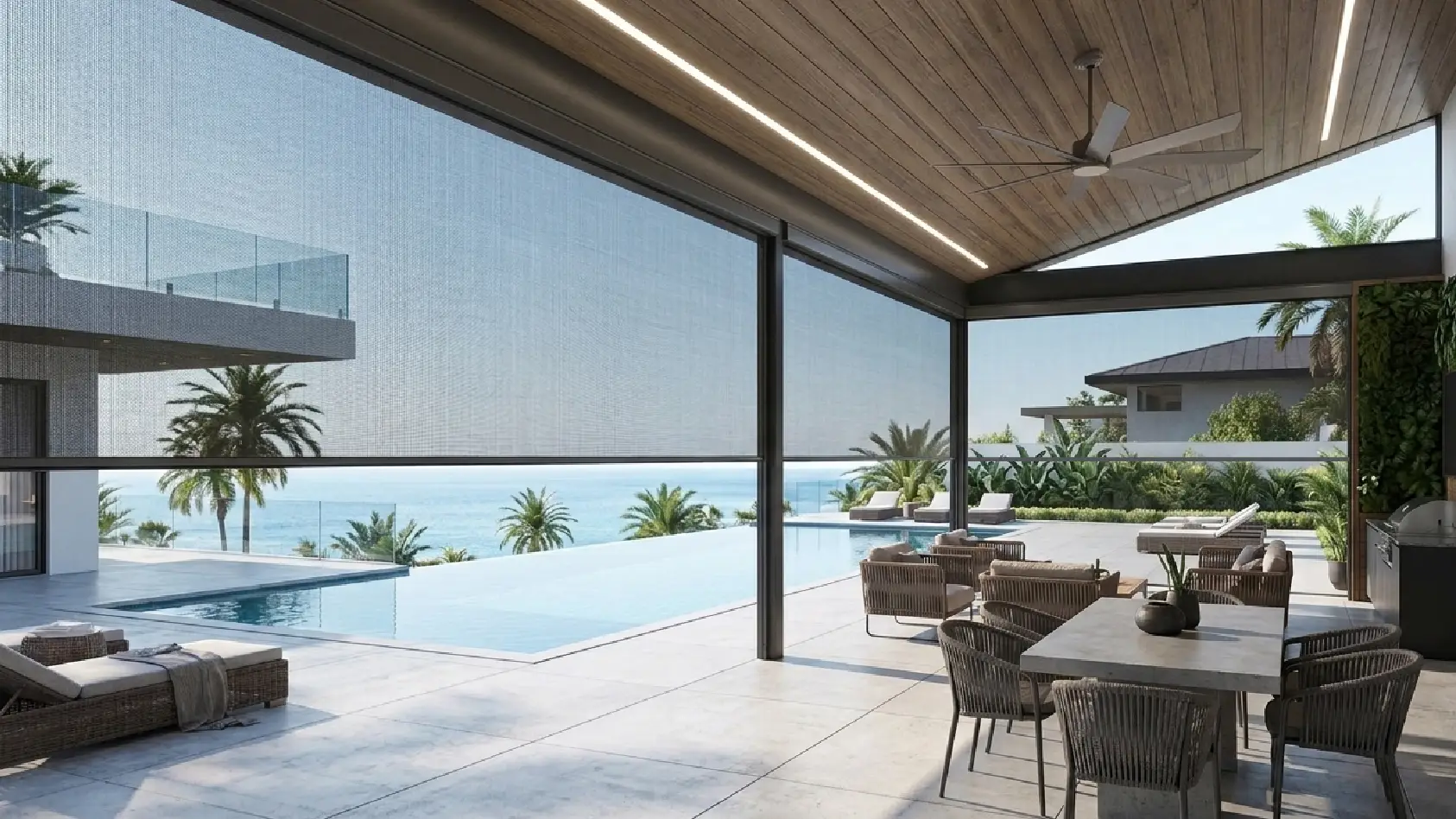

- Standard Bug Screen / No-See-um
