The SI IP Bridge is designed for seamless network-based discovery, commissioning, and control of SI PoE and Somfy PoE motors. When paired with the Sonoff Dongle-M Zigbee Coordinator, the system can support up to three independent Zigbee mesh networks, with features including spectrum analysis, a real-time Zigbee sitemap, coordinator hot-swap, and complete site-file backup and restore—providing greater capacity, visibility, reliability, and system resilience. Adding TRO.Y into the system allows popular third-party control system integration, including Control4, Josh, and Bond.
SI TriMesh™ Technology

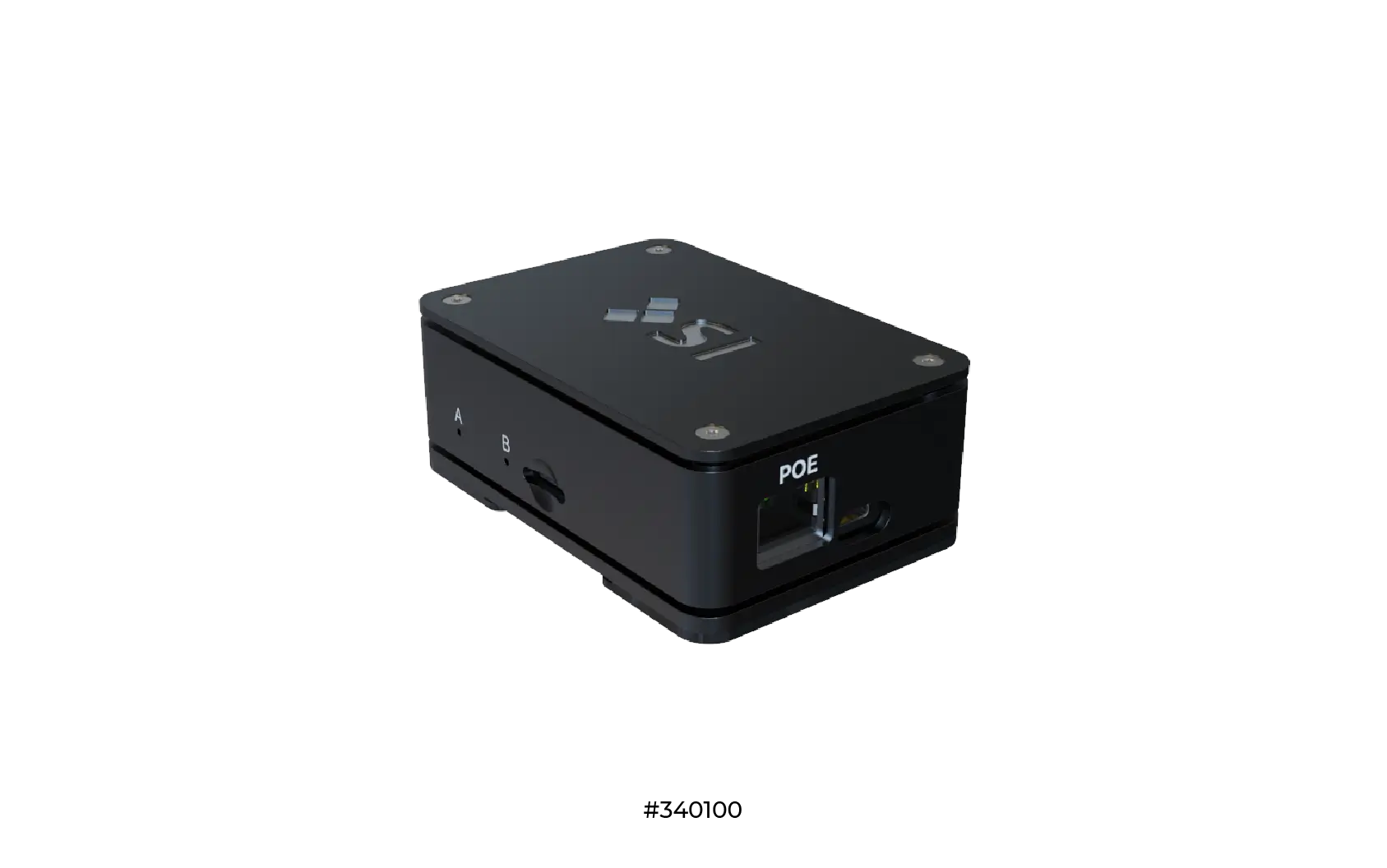

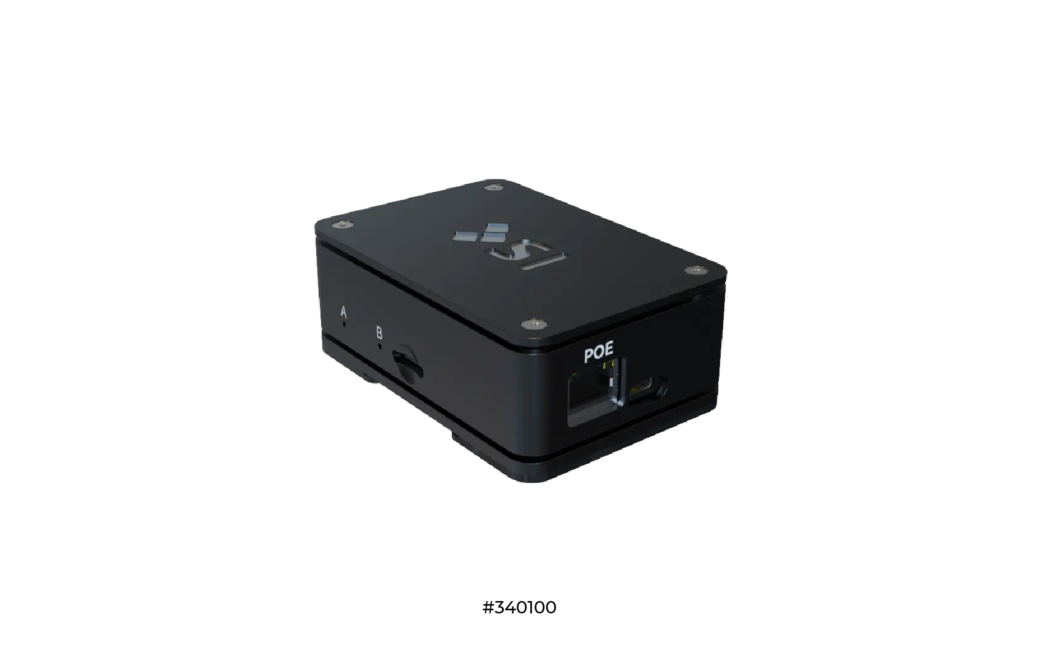

SI IP Bridge
Features
- Motor configuration
- Motor grouping
- Scene and event automation
- Third-party integration (Home Assistant, Control4, Bond, Josh, and others) via Zigbee Coordinator (Dongle-M)
- 2.4 GHz Spectrum Analyzer
- Visual Zigbee routing graph
- Zigbee Remote and Keypad Controls
Parts in the Box
#340100
SI IP Bridge (1), Instructions QR Code card (1)
Works with
- TRO.Y 2
- Somfy PoE Motors
- SI NiÑo PoE Motors
- Somfy Zigbee Motors
- SI Nino Zigbee Motors
IP Bridge Specifications:

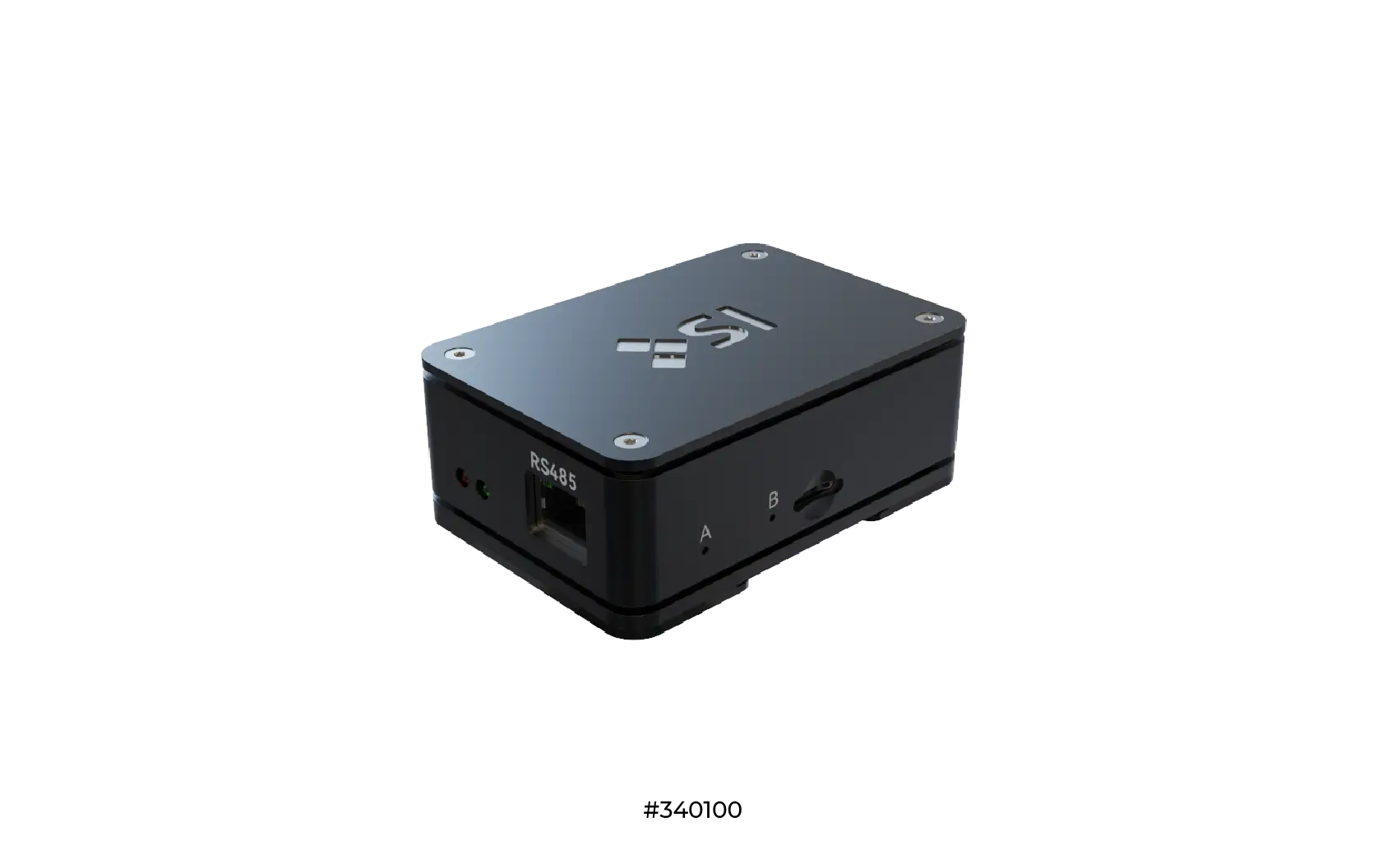

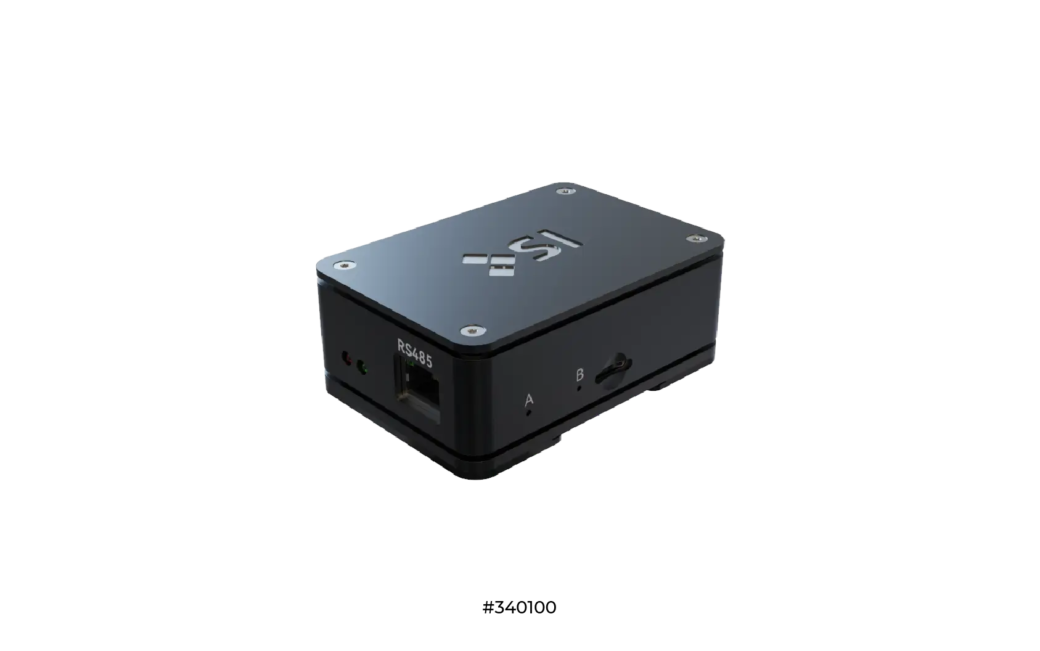

- RS485 port: Direct connection to TRO.Y (LEDs on RS485 port show activity)
- PoE port: Used for power and network connectivity (48V Max, 30W (IEEE 802.3af/at compliant)
- Motor Control: TriMesh is able to commission, configure, and control two different motor technologies within its own interface:
- PoE Motors (SI and Somfy)
- Zigbee (SI and Somfy)
- Mounting:
- DIN Rail compatible
- Small Form Factor (3.625 x 2.5 x 1.375 inches)
- Power and Communication Status LEDs

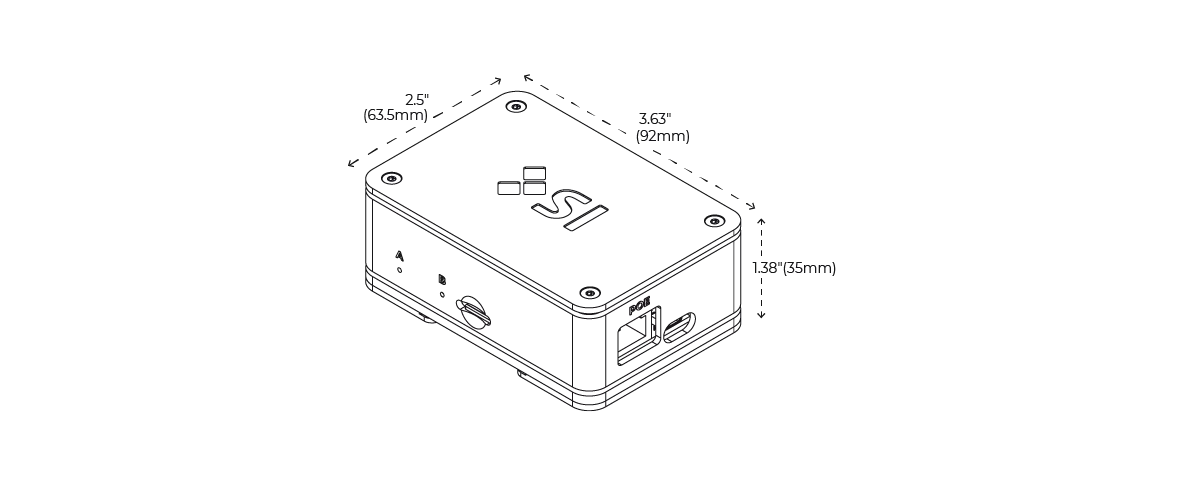

Dimensions
2.5″ D x 3.625″ W x 1.375″ H
(63.5mm x 92mm x 35mm)
Color
Black
